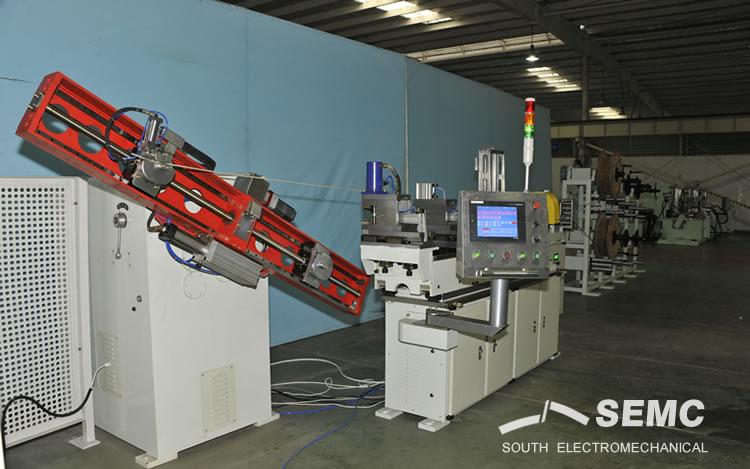

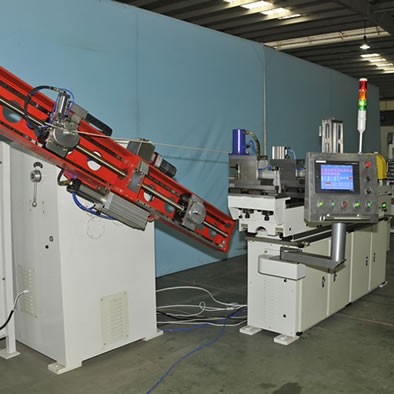

model: SKRB20-8

单根导线宽度single wire width

2.5~15mm

单根导线厚度single wire depth

1~4mm

SKRB20线圈总长度范围coil total length L1

400~2200 mm

SKRB30线圈总长度范围coil total length L1

400~3200 mm

SKRB20线圈梭心距coil bobbin distance L2

300~2000mm

SKRB30线圈梭心距coil bobbin distance L2

300~3000mm

线圈截面宽度coil section width A

5~25mm

线圈截面高度coil section height B

10~80mm

引线长度范围 coil lead length range

50-350 mm

梭芯直径coil bobbin diameter

依客户要求定制upon customer request

放线盘数量pay-off reel qty.

按客户要求定制upon customer request

并列根数paralleling wire number

2

距离地面中心高度height above ground center

1250 mm

绕线后尺寸精度size accuracy after winding

±0.2mm（未下模具之前）

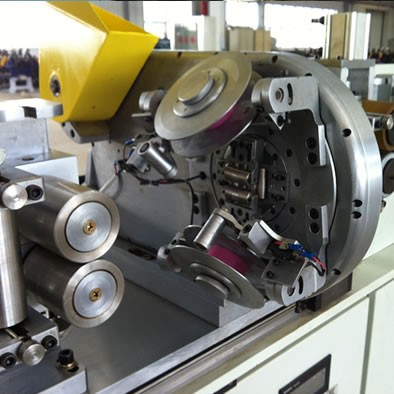

在线同步匝间绕包头转速online synchronous interturn win

ding&taping head rotating speed（Max.）

220r/min

叠包率overlap rate

0-75%可调节adjustable

主轴转速main shaft rotating speed（stepless speed change无级变速）

0~25r/min实际工作转速受匝间绕包速度限制actual working speed subject to interturn winding&taping speed

主轴最大载荷main shaft max. load

1000kg

转数计数容量revolution counting capacity

0~9999

放线架（单线棍）阻尼力矩（双阻尼）pay-off rack (single wire rod) damping torque (double damping)

5~100N.m
